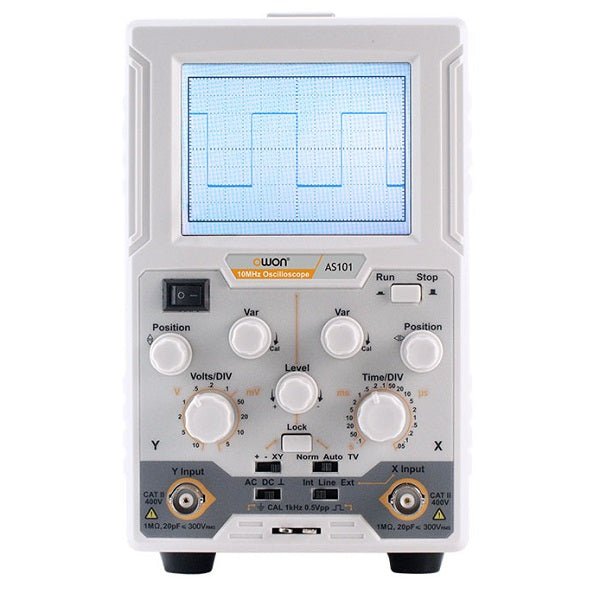

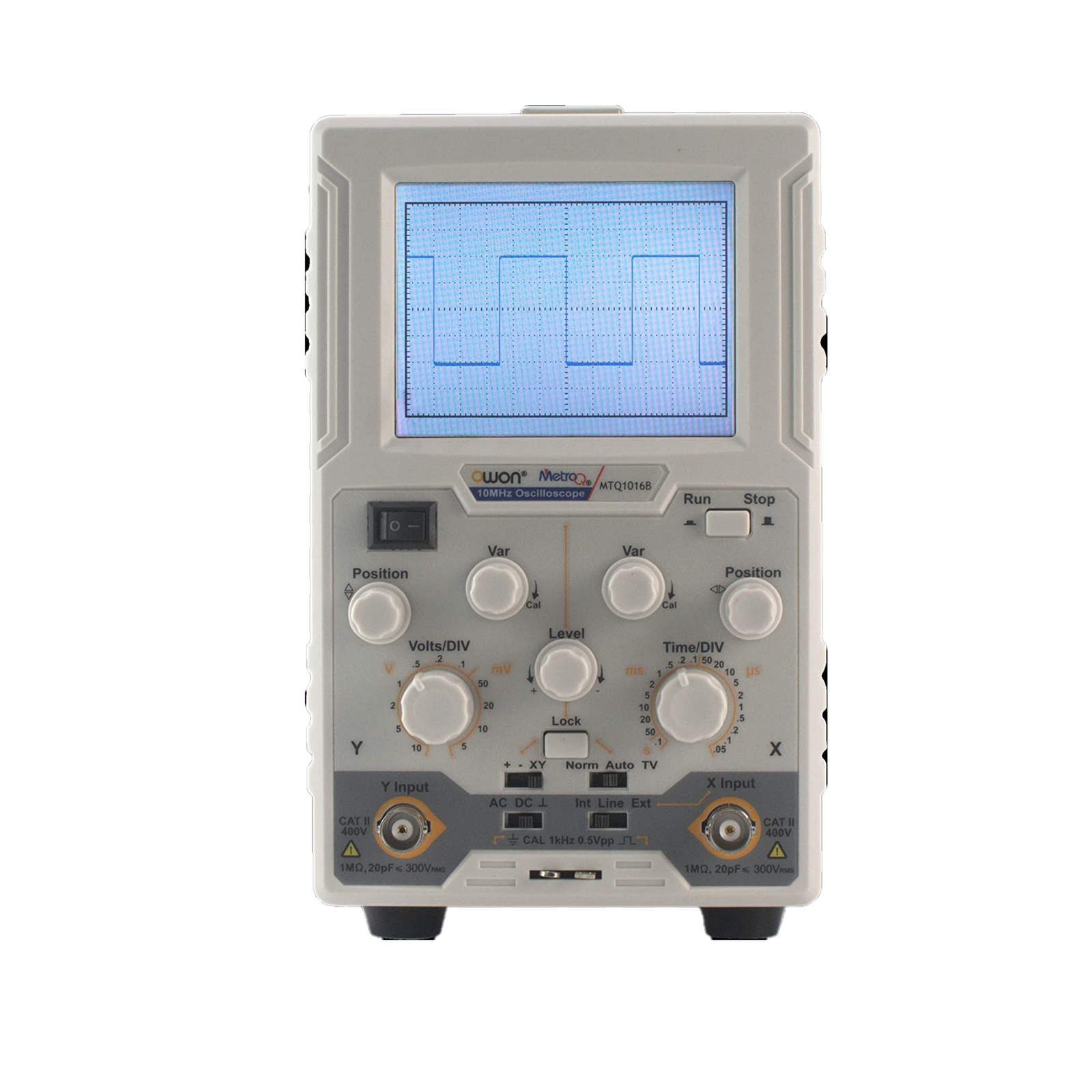

MetroQ Owon 10 MHz Analogue Oscilloscope Single Channel

Bandwidth: DC:0~10MHz,, AC: 10 Hz~10MHz
Channel: 1
Horizontal system:
Sample Rate: 100MS/s
Interpolation: (Sinx)/x
Scanning speed (S/DIV): 0.05us/DIV ~ 0.1s/DIV,step by 1 – 2 – 5
relay time accuracy: ±100 ppm
Trimming Ratio: ≧2.5:1

Vertical system:
Sensitivity: 5 mV/DIV～10 V/DIV
Displacement: ±10DIV
Low Frequency: ≥10 Hz (at input, AC coupling, -3 dB)
Rise time (at input, Typical): ≤ 30 ns
Trimming Ratio: ≧2.5:1
Input coupling: DC, AC , Ground
Input impedance: 1 MΩ±2%, in parallel with 20 pF±5 pF
Max. input voltage: 400V (DC+AC, PK – PK)

X-Y Model
Sensitivity: X:0.5V/DIV Y:0.1V/DIV ~ 1V/DIV
Bandwidth(-3dB): DC: 0 ~ 1MHz AC: 10Hz ~ 1MHz
Trigger: Trigger level range ±4 DIV from the screen center
Trigger level Accuracy (typical): ±0.3 DIV
Trigger Sources: Int, Line, Ext
Trigger Mode: Norm, AUTO, TV
Edge trigger: Rising, Falling
Video Trigger: Support standard NTSC, PAL and SECAM broadcast systems
Sample Rate / Relay Time: ±100ppm
Trigger lock support
Ext. Trigger Input Impedance
Output Voltage (Typical): Square, 0.5Vpp±2%
Frequency (Typical): Square wave of 1 kHz(±1%)
Display: 3.7″ Colored LCD (Liquid Crystal Display)
Power Supply: 100V – 240V AC, 50/60Hz, CAT II
Power Consumption: ＜15W
